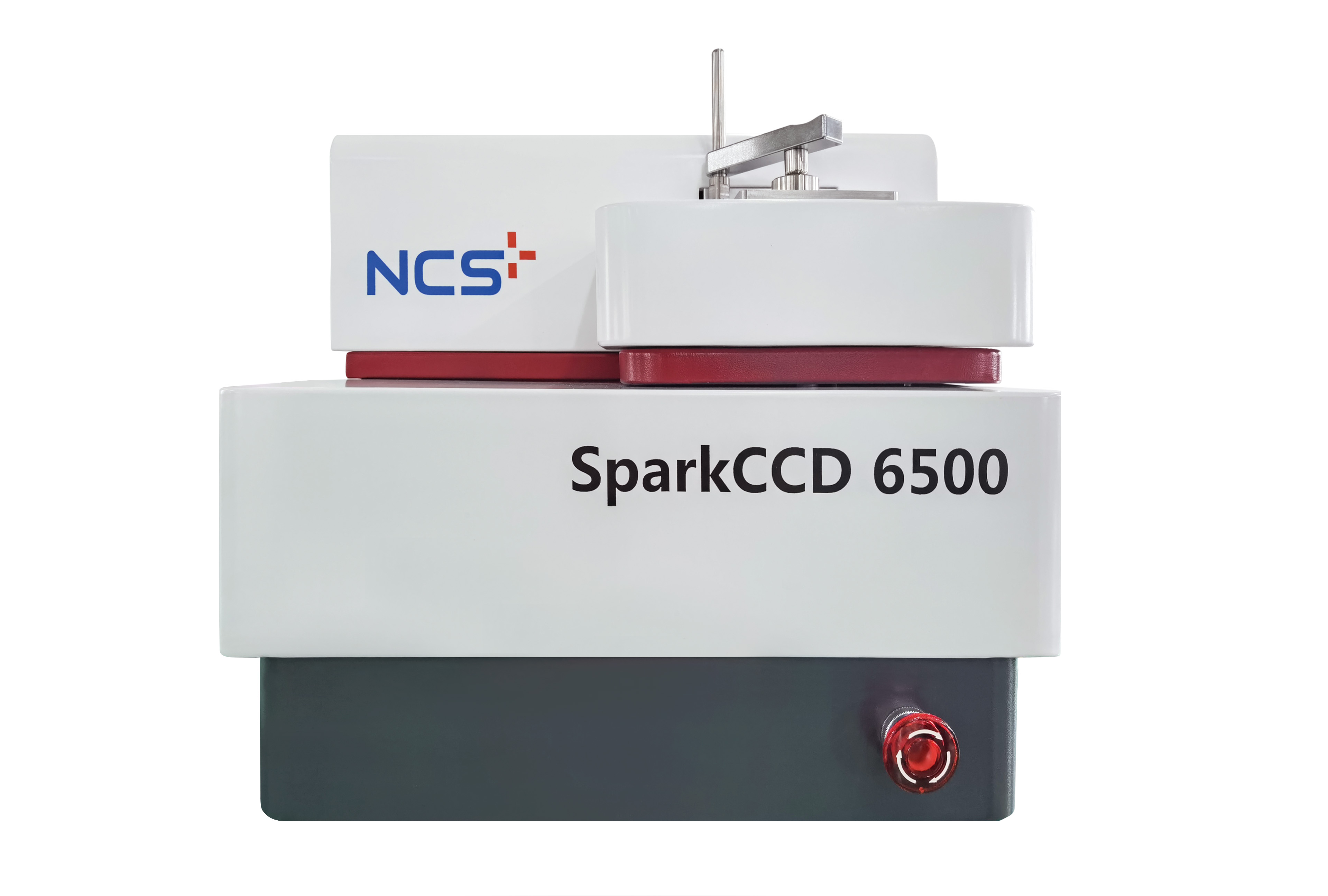

SparkCCD 6500 can be widely used in industries such as metallurgy, casting, machinery, steel, and non-ferrous metals. It is widely used in the research and development of raw materials, parts, and product processes in fields such as automotive manufacturing, aerospace, shipbuilding, electromechanical equipment, engineering machinery, electronics and electrical engineering, education, and scientific research. It can be used for sample analysis of metals and their alloys such as Fe, Al, Cu, Ni, Co, Mg, Ti, Zn, Pb, Sn, Mn, etc.

Power requirement: 220V ± 10%, single-phase, 16A, 2.5KVA, weight: 70kg

Overall dimensions: 470 * 872 * 435mm (width * depth * height)

Industry leading detector sensitivity:

High resolution CCD detector, pixel count: 3648+46, pixel size: 8 μ m. Thin coating with lower detection limit in UV band

Creating the optimal optical system in a 10000 level ultra clean environment

Paschen Runge structure Roland optical system, without aberration, with uniform resolution, high emission holographic grating, grating focal length of 500mm, with 2700 lines/mm, line resolution of 0.7407nm/mm, pixel resolution of 0.005926nm, spectral line range of 160-500nm

Slice exposure with high recognition intensity for trace elements

Increase amplitude, lower detection limit, single excitation, split exposure, simultaneous acquisition, simultaneous counting, independent control of integrated exposure time for different CCD, increase the intensity of trace elements, reduce the detection limit of the instrument, adjust the integration time with the band, and improve the stability of the instrument

Intelligent control system

Tidal flushing method, intelligent judgment and analysis of interval time, reasonable replenishment of argon gas, reducing argon consumption, 60ml/min ultra-low standby flow rate, one bottle of argon gas standby for 70 days within 24 hours

All solid-state digital spark light source

All solid-state digital spark light source (National Patent Technology Patent No. ZL 201010118150.4)

Continuously adjustable energy and frequency

Up to 1000Hz in frequency

MTBF (Mean Time Between Failures) ＞ 5000 hours

Coaxial spin type

Gas circuit excitation station

Spin gas path

Supercharged self blowing

Fully stimulated

Thousand excitations without cleaning

acquisition system

Network port transmission method, stable and reliable data transmission

Multi threaded data collection with fast and frequent collection speed

Self protective lens isolation valve

Easy to maintain

Eliminating optical system pollution caused by misoperation

Third element interference

Automatically deduct additive and multiplicative interference between elements, resulting in more accurate analysis results

Curve segment jump

Element content high and low curve segmentation, automatic matching, and wide analysis range

Unknown sample automatic matching optimal analysis program

High speed intelligent calibration

Single excitation can correct the full spectrum

Automatically calibrate pixel drift to ensure optical system stability

Analysis software

Simple, fresh, and powerful

Multilingual versions (Chinese, English, Russian, German)

Intelligent smelting ingredient calculation

Brand identification

Support automatic calculation functions such as carbon equivalent
