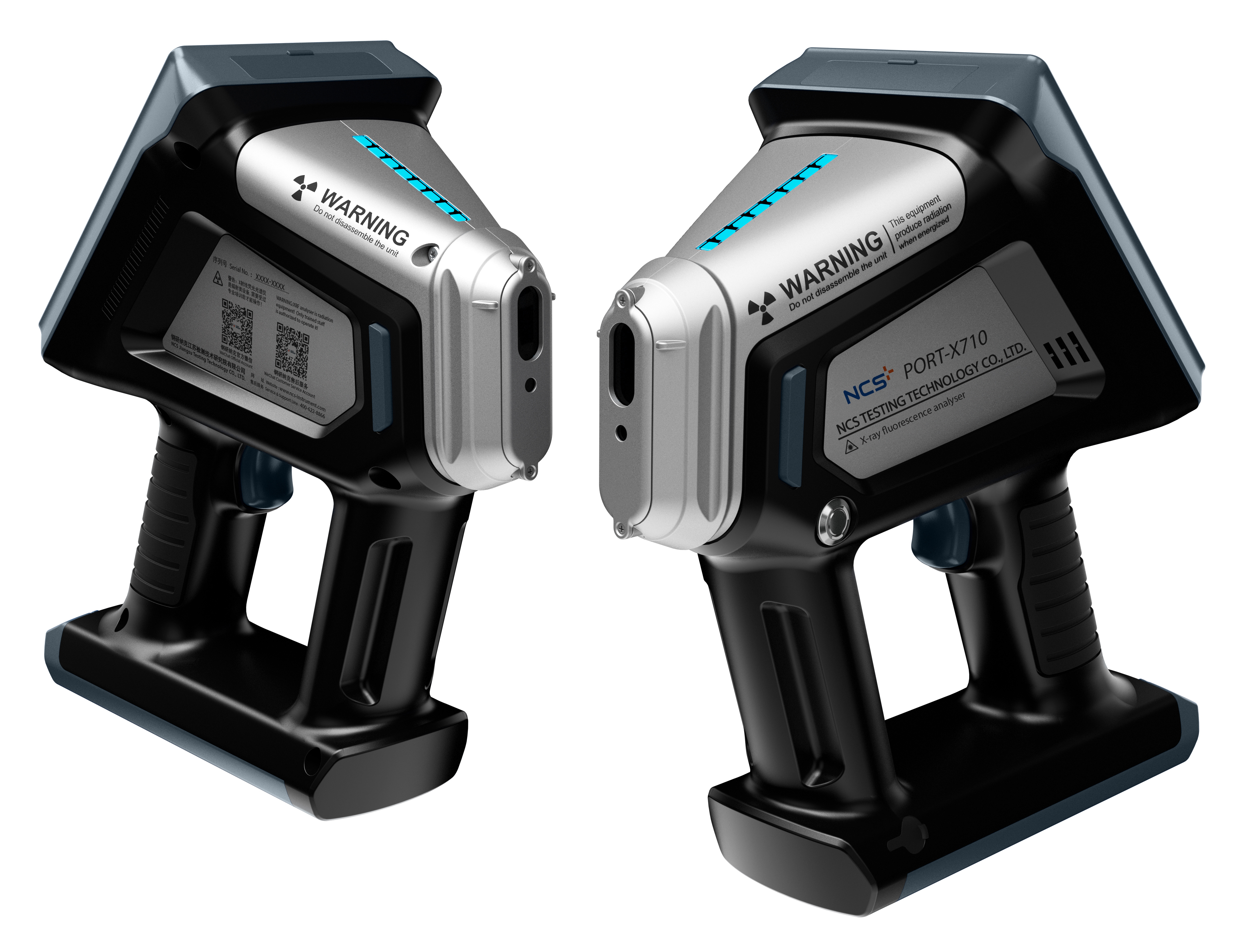

PORT-X710 Handheld X-ray Fluorescence (XRF) Analyzer features accurate alloy grade identification capabilities. It can test elements ranging from Ti to U, enabling instant measurement right after startup with a 10-hour battery life and support for charging while testing. The spectrometer accurately determines and identifies various alloys including stainless steel, low alloy steel and copper alloy, and also supports the development of customized analysis methods.

Application Fields

1. Precise Composition Analysis: Rapidly measures the content of various alloying elements, covering Ti to U.

2. Accurate Grade Identification: Equipped with a standard database of no less than 800 alloy grades, it facilitates raw material acceptance, inventory management and quality traceability, preventing incorrect selection and improper use.

3. Waste Alloy Classification: Precisely classifies waste alloys by key elements in the recycling industry, quickly distinguishing different alloy types to improve recycling efficiency and value.

Technical Specifications & Advantages：

No.	Specification	PORT-X710
1	X-ray Tube	5W/50kV/200μA Max
2	Target Material	Rh
3	Detector	Si-Pin
4	Resolution	≤185eV
5	Operating Temperature	-10℃~50℃
6	Dimension	240mm (L) * 110mm (W) * 240mm (H)
7	Weight	1.6 kg
8	Algorithm	Fundamental Parameter Method
9	Test Scope	Low alloy steel, stainless steel, copper-based alloy, etc.
10	Algorithm Development	Supports customized method development by users
11	Test Elements	Ti~U
12	Lithium Battery	2 pieces, 7.4V 9600mAh
13	Instrument Endurance Time	10h
14	Processor	Qualcomm Snapdragon™, 2.0GHz, 1MB L2 Cache
15	CPU	8-core, 14nm FinFET manufacturing process
16	Data Connection	Supports WiFi,802.11 a/b/g/n/cn, BT4.2/LE and other short-range wireless communication
17	Operating System	Android 7.1
18	Display Screen	5.5-inch high-definition touch screen (1080p)
19	Radiation Safety	Standard radiation protection cover; Power-on password protection; Sample detection sensor; Radiation safety certification;



Short-term Precision Test of 316 Stainless Steel (Unit: %)

Element	Fe	Cr	Ni	Mo	Mn	Co	Cu
316 Standard Content	68.89	16.68	10.18	2.09	1.03	0.19	0.13
1	69.07	16.89	10.37	2.05	1.06	0.40	0.12
2	69.53	16.75	10.14	2.06	1.01	0.32	0.14
3	69.01	17.01	10.44	2.08	0.93	0.39	0.12
4	69.14	16.83	10.42	2.05	1.02	0.41	0.12
5	69.08	16.78	10.42	2.08	1.03	0.42	0.16
6	69.24	16.77	10.35	2.06	0.97	0.40	0.15
7	69.45	16.66	10.20	2.07	1.07	0.38	0.15
8	69.40	16.74	10.21	2.08	1.00	0.38	0.12
9	69.31	16.94	10.17	2.06	1.00	0.35	0.13
10	69.20	16.78	10.30	2.08	1.03	0.43	0.15
11	69.21	16.78	10.28	2.05	1.07	0.44	0.13
AVG	69.24	16.81	10.30	2.07	1.02	0.39	0.14
RSD	0.27%	0.61%	1.06%	0.69%	4.02%	17.15%	10.68%



Stainless Steel Test Results (Unit: %)

Sample_Name	Cr	Cu	Fe	Mn	Mo	Nb	Ni	Ti	V	W
GSBA68001-89-2	12.46	0.363	72.65	0.981	0.35	/	11.52	0.21	/	0.61
Test Value	12.67	0.36	72.97	0.95	0.34	0	11.55	0.25	0	0.59
GSBA68001-89-5	17.16	0.126	70.70	0.732	0.26	/	9.05	0.57	/	0.25
Test Value	17.42	0.14	71.1	0.82	0.27	0	9.14	0.54	0	0.3
GBW01660	14.48	0.288	68.12	0.836	0.436	/	13.88	0.223	/	0.435
Test Value	14.85	0.28	68.72	0.81	0.47	0	13.89	0.1	0	0.48
GBW01662	20.52	0.148	64.46	0.622	0.322	/	12.39	0.592	/	0.163
Test Value	20.52	0.16	64.77	0.76	0.34	0	12.42	0.58	0	0.14
GSBH40115-2	16.05	3.44	62.49	0.99	1.33	0.047	13.99	0.62	0.042	0.067
Test Value	16.37	3.4	62.8	1.04	1.33	0.05	14.16	0.63	0.03	0.06
GSBH40115-4	17.04	2.54	61.92	0.576	3.69	0.071	11.91	0.67	0.081	0.22
Test Value	17.24	2.64	62.27	0.62	3.85	0.08	12.28	0.62	0.04	0.21

(1) Wide Detection Range: Covers element testing from Ti to U.

(2) Ergonomic Design: Dual-bar design ensures stable placement and labor-saving operation, no additional test stand required.

(3) Comprehensive Radiation Protection: Interlocked components effectively avoid radiation risks.

(4) High-efficiency X-ray Tube: 50kV 5W X-ray tube with high efficiency and long service life.

(5) Instant Measurement: No preheating needed, saving valuable testing time.

(6) Integrated Design: Calibration plate and protective device combined into one for simple and convenient operation.

(7) Superior Heat Dissipation: Maintains stable operation even at high temperatures.

(8) User-friendly System: Android operating system with a 5.5-inch touch screen for easy operation and quick mastery.
